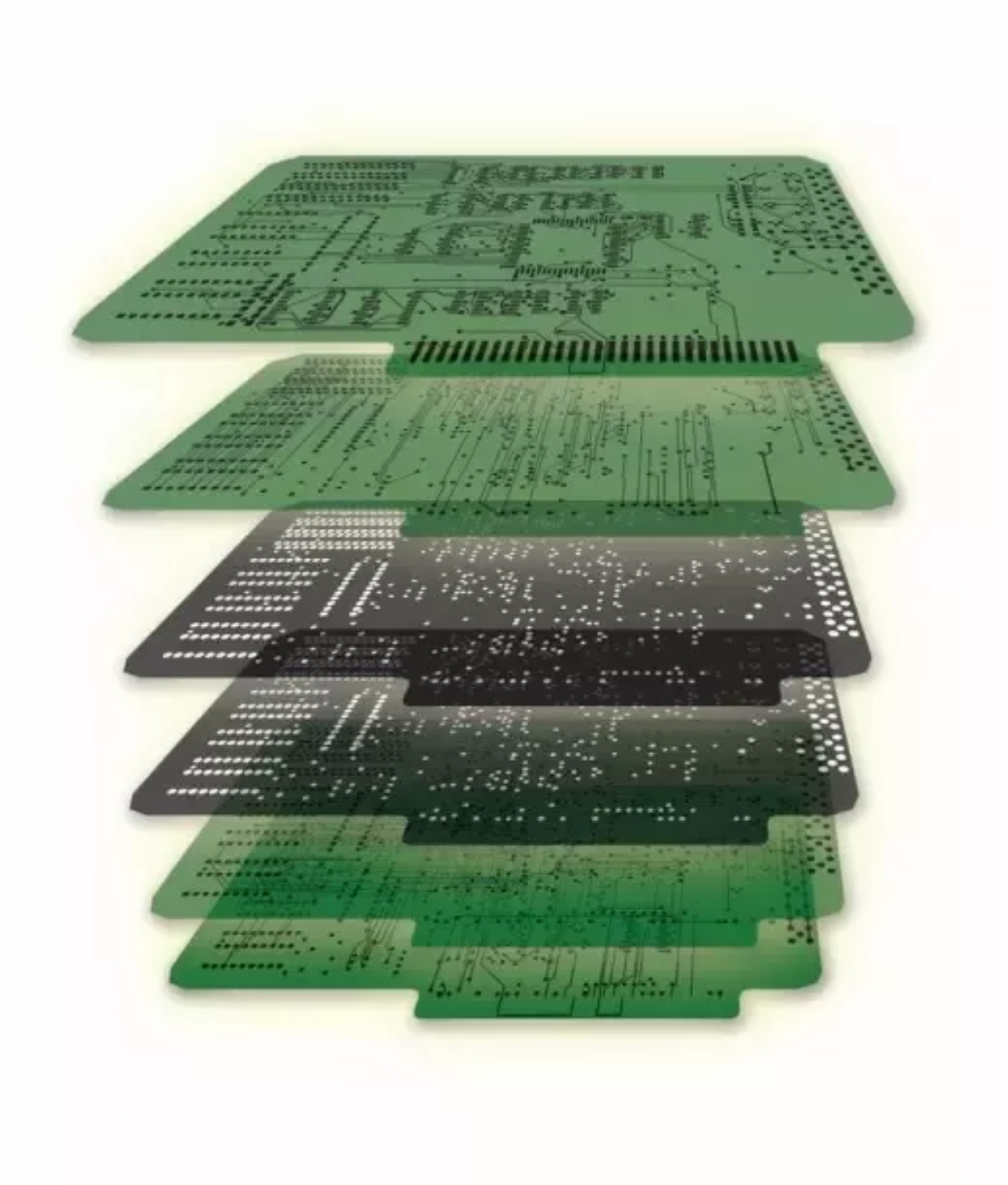

Multi Layer PCB

Unlock the potential of electronics with our Multi Layer PCBs. Highly reliable and versatile, they pack the power of a double-layer PCB into a fraction of the size. Experience perfect alignment accuracy as multiple layers seamlessly interact. With a wide range of sizes and thicknesses, our Multi Layer PCBs cater to diverse applications. Choose compactness without compromising performance.

Production Specifications

Type of Laminates: FR-4, FR-4 (High Tg)
Laminate Thickness: 0.8 to 3.2 (mm)
Finish Copper Thickness (IL): Up to 70 microns
Finish Copper Thickness (OL): Up to 135 microns
Minimum Track Width: 0.17 mm (7 mil)
Minimum Track Spacing: 0.17 mm (7 mil)
Minimum Hole Diameter: 0.2 mm (16 mil)
Surface Finishing: HAL, HASL, Lacquer, OSP, ENIG
Special Finishes: Carbon Printed Contacts, Peelable Mask
Capacity: Up to 500 sq. mtr
